Overview

4K HDMI Capture: Supports 4K/60Hz HDMI input and loop-through output for high-resolution video recording and live streaming.

USB 3.0 High Speed: Delivers 300-350MB/s bandwidth, backward compatible with USB 2.0 for seamless connectivity.

Plug-and-Play: No drivers required; UVC/UAC protocol ensures instant compatibility with Windows, Mac, and Linux systems.

Audio Integration: Built-in MIC input and PCM audio support at 48KHz for synchronized video and audio capture.

Multi-Device Support: Multiple capture cards can operate simultaneously on a single PC for versatile setups.

Auto-Detection: Automatically adjusts input video/audio formats to match output settings for optimized performance.

Firmware Upgradeable: Online firmware updates enhance compatibility and functionality over time.

Broad Software Compatibility: Works with OBS, VLC, QuickTime, Adobe Encoder, and other third-party streaming/recording software.

Specifications

Dimensions: 113 x 61 x 13 mm

Color: Classic Black

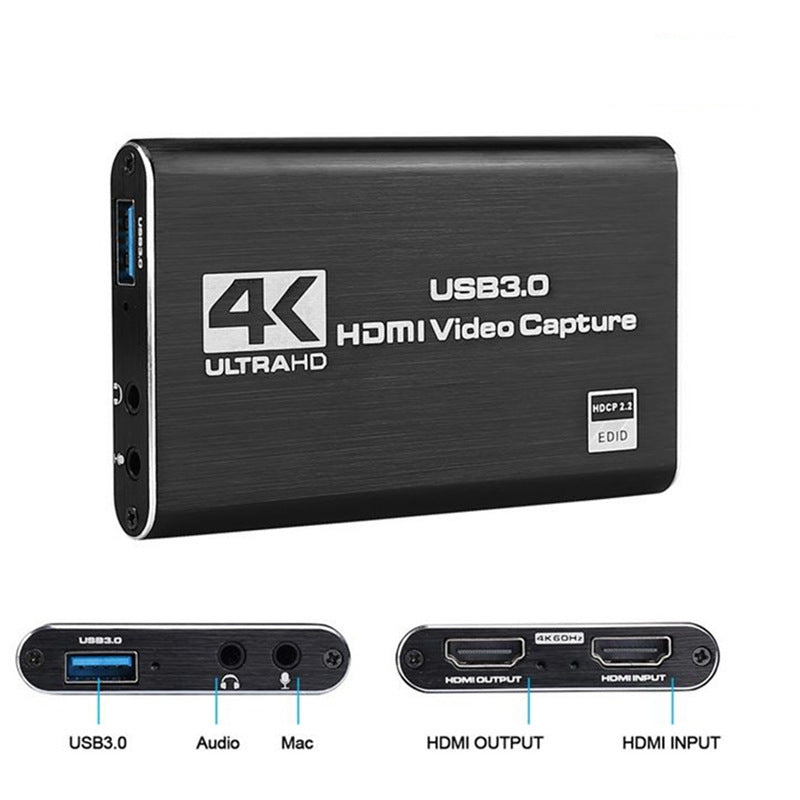

Input Ports: 1x HDMI, 1x MIC audio

Output Ports: 1x HDMI loop-through, 1x audio output, 1x USB 3.0

Video Input: 4K/60Hz, 1080P/60Hz, and multiple resolutions (480P to 3840x2160)

Audio Input: LPCM audio signal

Sampling Rate: HDMI video sampling at 165MHz

Output Color Space: YUV, RGB

Power Consumption: ≤2.5W

Operating Temperature: 0-70°C

Storage Humidity: 5%-90%

Packing List

HDMI capture card1

USB 3.0 data cable1

Product manual1

Leather box1
