Product details
Description
Overview

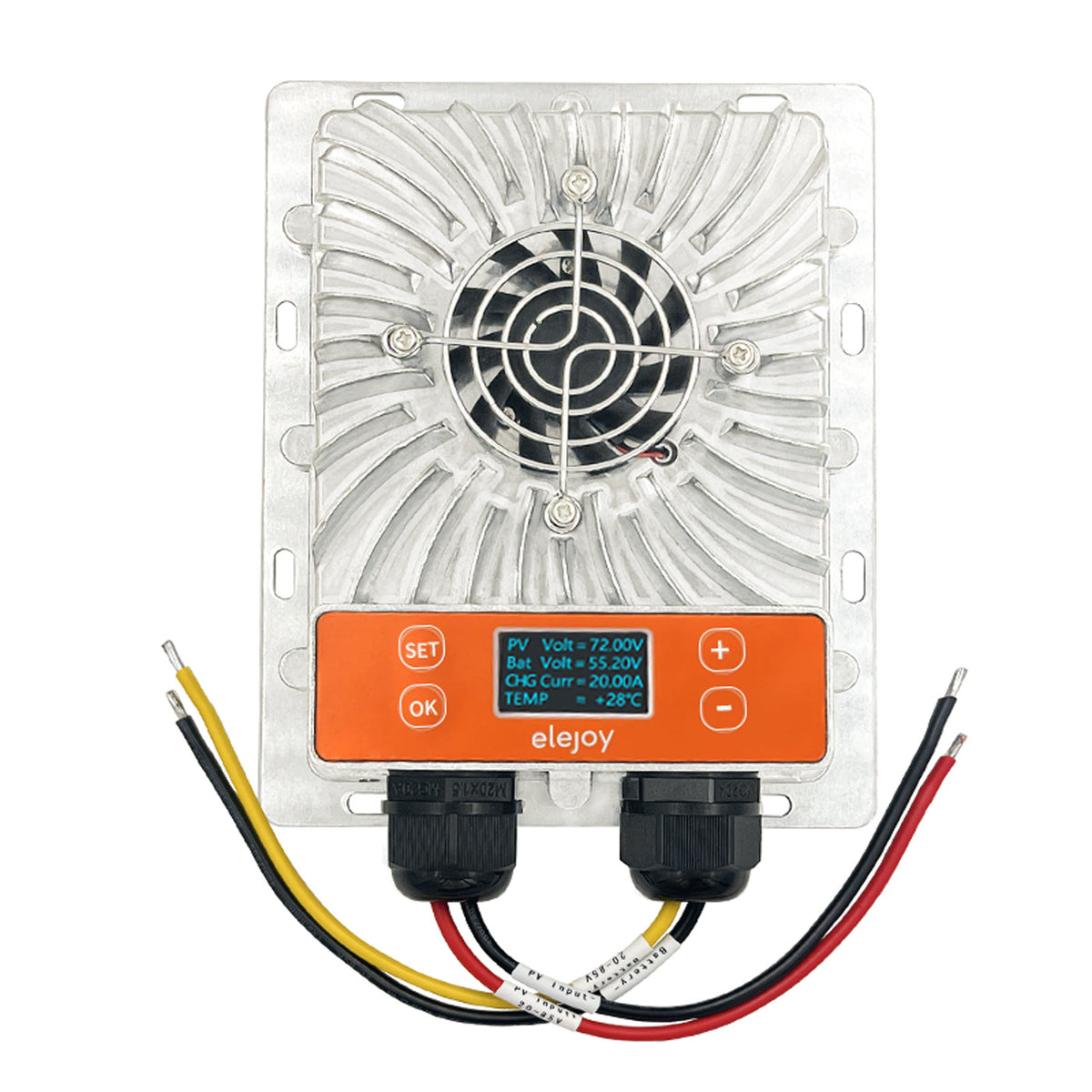

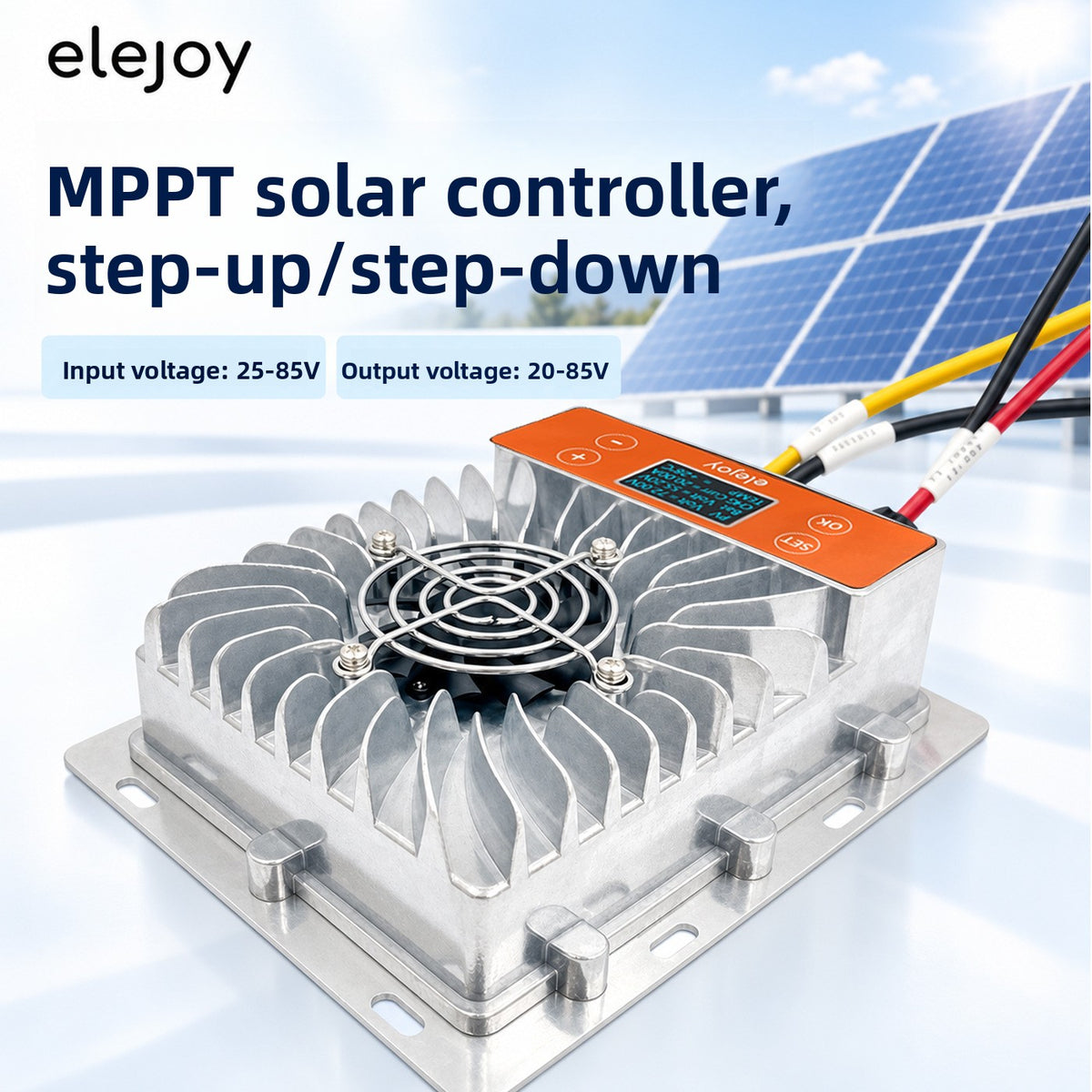

This MPPT Solar Charge Controller supports step-up and step-down conversion, with 20A charging current. The solar panel input voltage ranges from 25-85V, and battery charging output voltage is adjustable from 20-85V. Adopting advanced MPPT technology, it
achieves high solar energy utilization and efficient power conversion. Built-in cooling fan and aluminum heat sink for excellent heat dissipation. It is widely used for photovoltaic power generation and energy storage battery charging systems. Two versions available:
Chinese display and English display.
Specifications
Product Name: Step Up & Step Down MPPT Solar Charge Controller
Model: EMX20A
Charging Current: 20A
PV Input Voltage: 25V - 85V
Battery Output Voltage: 20V - 85V (adjustable)
Versions: Chinese Interface / English Interface
Heat Dissipation: Aluminum heat sink + built-in cooling fan
Features: MPPT maximum power tracking, buck-boost conversion, adjustable charging voltage, overcharge/overvoltage/overheat protection
Application: Off-grid photovoltaic system, energy storage battery charging, solar power generation project
Packing List
1 × EMX20A MPPT Solar Charge Controller
